THB-35 gas pipe balancer
Product overview

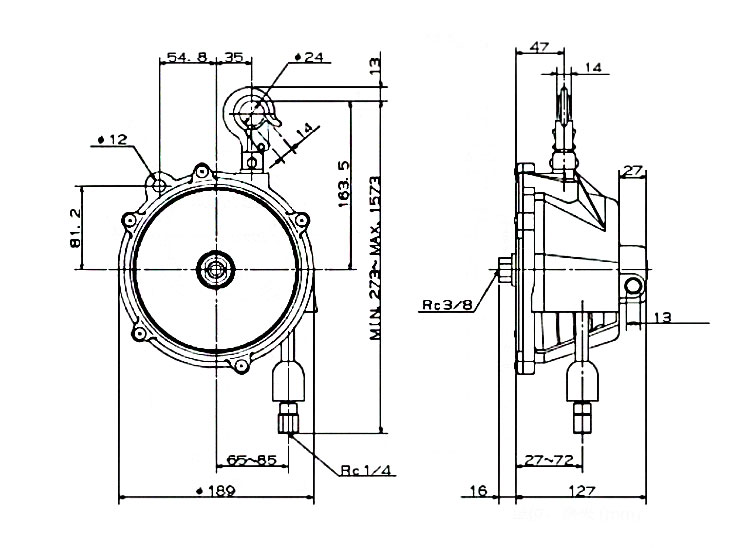

THB-35 gas pipe balancer
Product features
● polyester hose with joint replaces steel wire rope, and pneumatic tools can move up and down easily after. When the spring fails, the anti falling device starts to prevent pneumatic tools and devices from falling.
● the internal diameter of the hose is 8.5mm. When there is enough gas, the suspended tool runs.
Work environment
Location: indoor or normal atmospheric conditions
Service temperature: - 10 ℃ - 40 ℃
Air pressure: 1.0MPa (10kgf / cm2)
| Model | Load（kg） | Trip（m） | Tracheal diameter（mm） | Weight（kg） |
| THB-15 | 0.5-1.5 | 1.3 | 8.5 | 1.9 |
| THB-25 | 1.5-2.5 | 1.3 | 8.5 | 2.0 |
| THB-35 | 2.5-3.5 | 1.3 | 8.5 | 2.1 |
| THB-50 | 3.5-5.0 | 1.3 | 8.5 | 2.1 |
| THB-65 | 5.0-6.5 | 1.3 | 8.5 | 2.2 |
